Yealink Sip T19 E2

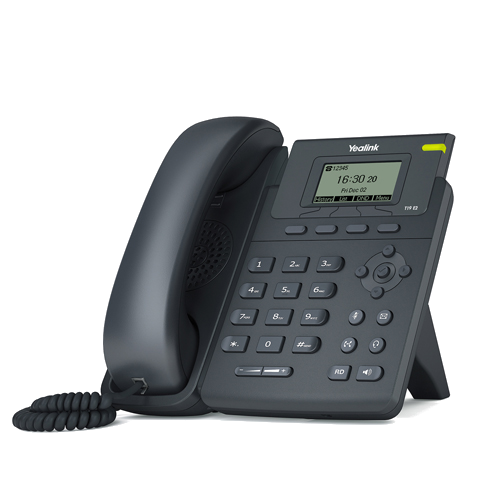

Yealink Sip T19 E2 Image



Description

The SIP-T19P E2 is one of Yealink’s latest answers for the entry-level IP phone that offers features and performance normally associated with much more advanced phones. The quite intentional choice of high-quality materials, combined with a generously large 132×64-pixel graphical LCD that gives a clear 5-line display,guarantees both a smoother user experience and easy access to much more visual information at a glance. Dual 10/100 Mbps network ports with integrated PoE are ideal for extended network use. The SIP-T19P E2 supports single VoIP account, simple, flexible and secure installation options, plus IPv6 and SRTP/HTTPS/ TLS, VLAN and QoS. It includes headset use, wall-mountable and has been designed very specifically for better business.

Features

  • 132×64-pixel graphical LCD
  • Two-port 10/100 Ethernet Switch
  • Up to 1 SIP account
  • Headset support
  • Wall mountable
  • Simple, flexible and secure
  • provisioning options

    Specification

    Audio Features
  • Codec: G.722, G.711(A/μ), G.729AB, G.726, iLBC
  • DTMF: In-band, Out-of-band(RFC 2833) and SIP
    INFO
  • Full-duplex hands-free speakerphone with AEC , VAD, CNG, AEC, PLC, AJB, AGC





Phone Features
  • 1 VoIP account
  •  Call hold, mute, DND
  •  One-touch speed dial, hotline
  •  Call forward, call waiting, call transfer
  •  Group listening, SMS
  •  Redial, call return, auto answer
  •  Local 3-way conferencing
  •  Direct IP call without SIP proxy
  •  Ring tone selection/import/delete
  •  Set date time manually or automatically
  •  Dial plan
  •  XML Browser, action URL/URI
  •  Integrated Screenshots
  •  RTCP-XR
Directory
  • Loal phonebook up to 1000 entries
  •  Black list
  •  XML remote phonebook
  •  Intelligent search method
  •  Phonebook search/import/export
  •  Call history: dialed/received/missed/forwarded



IP-PBX Features
  •  Anonymous call, anonymous call rejection
  •  Hot-desking, emergency call
  •  Message Waiting Indicator (MWI)
  •  Voice mail, call park, call pickup
  •  Intercom, paging, music on hold
  •  Call completion



Display and Indicator
  • 132×64-pixel graphical LCD
  •  LED for call and message waiting indication
  •  Intuitive user interface with icons and soft keys
  •  National language selection
  •  Caller ID with name, number
Feature keys
  • 6 features keys: message, headset, redial, tran,
    mute, hands-free speakerphone
  •  5 navigation keys
  •  Volume control keys



Interface
  •  2xRJ45 10/100M Ethernet ports
  •  1xRJ9 (4P4C) handset port
  •  1xRJ9 (4P4C) headset port
Other Physical Features
Wall mountable
  • External universal AC adapter (optional):
    AC 100~240V input and DC 5V/600mA output
  •  Power consumption (PSU): 0.9-1.25W
  •  Power consumption (PoE): 1.2-2.5W
  •  Dimension(W*D*H*T):
    185mm*188mm*143mm*38mm
  •  Operating humidity: 10~95%
    > Operating temperature: -10~50°C
Package Features
  •  Qty/CTN: 10 PCS
  •  N.W/CTN: 9.6kg
  •  G.W/CTN: 10.7kg
  •  Giftbox size: 215mm*200mm*121mm
  •  Carton Meas: 630mm*436mm*210mm
Management
  •  Configuration: browser/phone/auto-provision
    Auto provision via FTP/TFTP/HTTP/HTTPS
    for mass deploy
  •  Auto-provision with PnP
    Zero-sp-touch,TR-069
  •  Reset to factory, reboot
  •  Package tracing export, system log
Network and Security
  • SIP v1 (RFC2543), v2 (RFC3261)
  •  NAT transverse: STUN mode
  •  Proxy mode and peer-to-peer SIP link mode
  •  IP assignment: static/DHCP
    HTTP/HTTPS web server
  •  Time and date synchronization using SNTP
    UDP/TCP/DNS-SRV(RFC 3263)
  •  QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
  •  SRTP for voice
  •  Transport Layer Security (TLS)
  •  HTTPS certificate manager
  •  AES encryption for configuration file
  •  Digest authentication using MD5/MD5-sess
  •  IEEE802.1X
  •  IPv6
