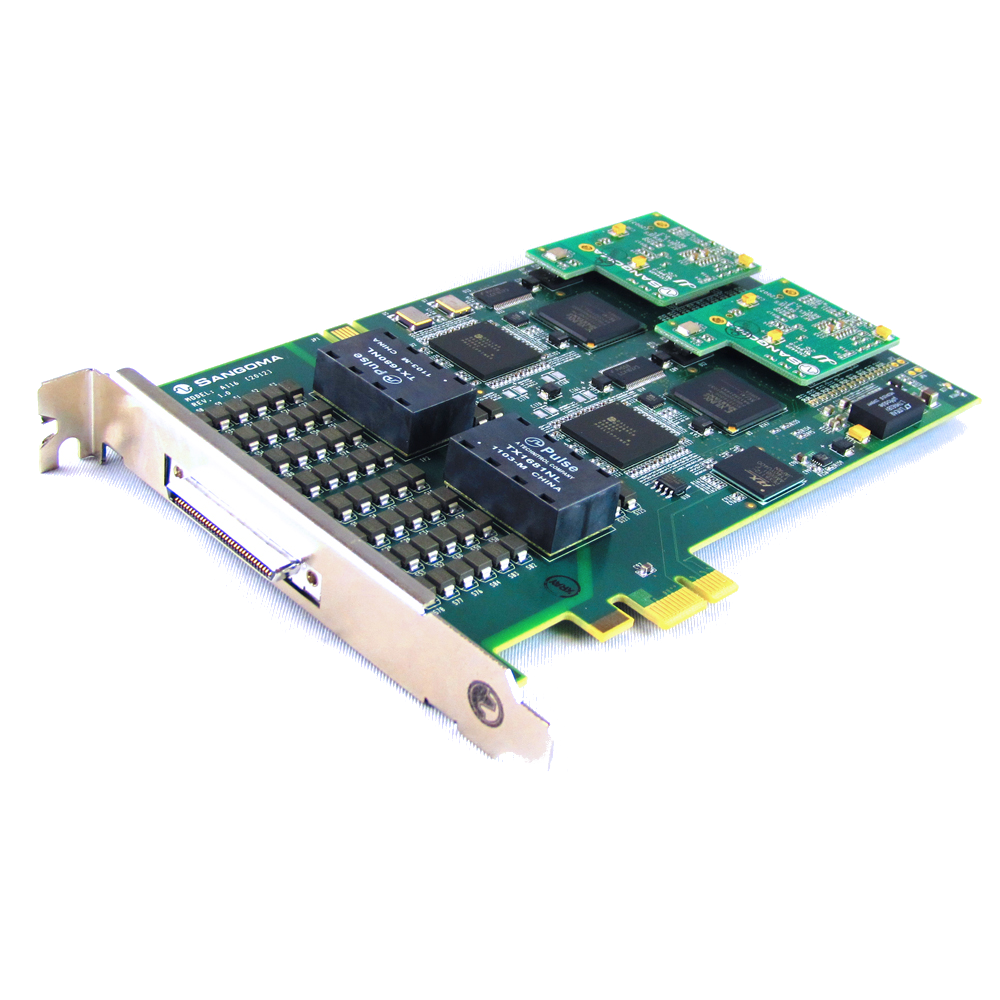

Sangom A116 Digital Telephony Card

  • 16-port E1/T1 Port Voice and Data Card
  • 480 simultaneous voice calls (or 32.8 Mbps full duplex data)
All Digital Telephony Cards Support the Following:
  • Protocol Support: CAS, MFC/R2, PRI, SS7, HDLC, Frame Relay, X.25, Transparent bit-stream
  • Available in PCI and PCI Express in 2U form factor
  • Carrier-Grade hardware Echo Cancellation options
  • Includes on-board diagnostic tool kit
  • Supports most motherboards & servers
  • Linux and Windows Supported
  • Supports Asterisk, FreePBX, proprietary PBX, IVR and more
  • Life time Warranty


PBX Support Operating System Support Server and Motherboard Support
  • FreePBX
  • PBXact UC
  • Asterisk
  • FreeSWITCH
  • Etc
  • Windows 2003, Windows XP, Windows Server 2008, Windows Vista, Windows 7
  • Linux (All versions, releases and distributions from 1.0 up)
Compatible with most commercially available servers and motherboards
DSP Echo Canceller Diagnostic Tools Wiring Connections
  • G.168-2002 echo cancellation in the hardware
  • 1024 taps/128 ms tail per channel on all channel densities
  • DTMF decoding and tone recognition
  • Voice quality enhancement: music protection, acoustic echo control and adaptive noise reduction
  • No CPU load as a result of echo cancellation
  • Does not increase the physical size of the card, and no additional slot is required
  • SNMP
  • System logs
  • A101 – A108
    • Standard E1/T1 pinouts on an RJ45 jack
    • 2m cables with RJ45 plugs, A108 supplied with 4 Y-cables (2 RJ45 plugs to 1 RJ45)
  • A116
    • 68 pin SCSI type interface with RJ45 breakout panel
